An OTDR - Optical Time Domain Reflectometer - is the primary quality-assurance tool in fiber optic splicing. It sends a pulse of light down the fiber and measures how long it takes for reflections to return, allowing the technician to map every event on the fiber with precise distance and loss values.
How OTDR Testing Works
The OTDR injects a short pulse of laser light into the fiber and listens for backscattered light returning to the instrument. Different events on the fiber - splices, connectors, bends, and breaks - each produce a characteristic reflection signature. The OTDR plots these events on a trace showing distance (horizontal axis) and optical power (vertical axis).

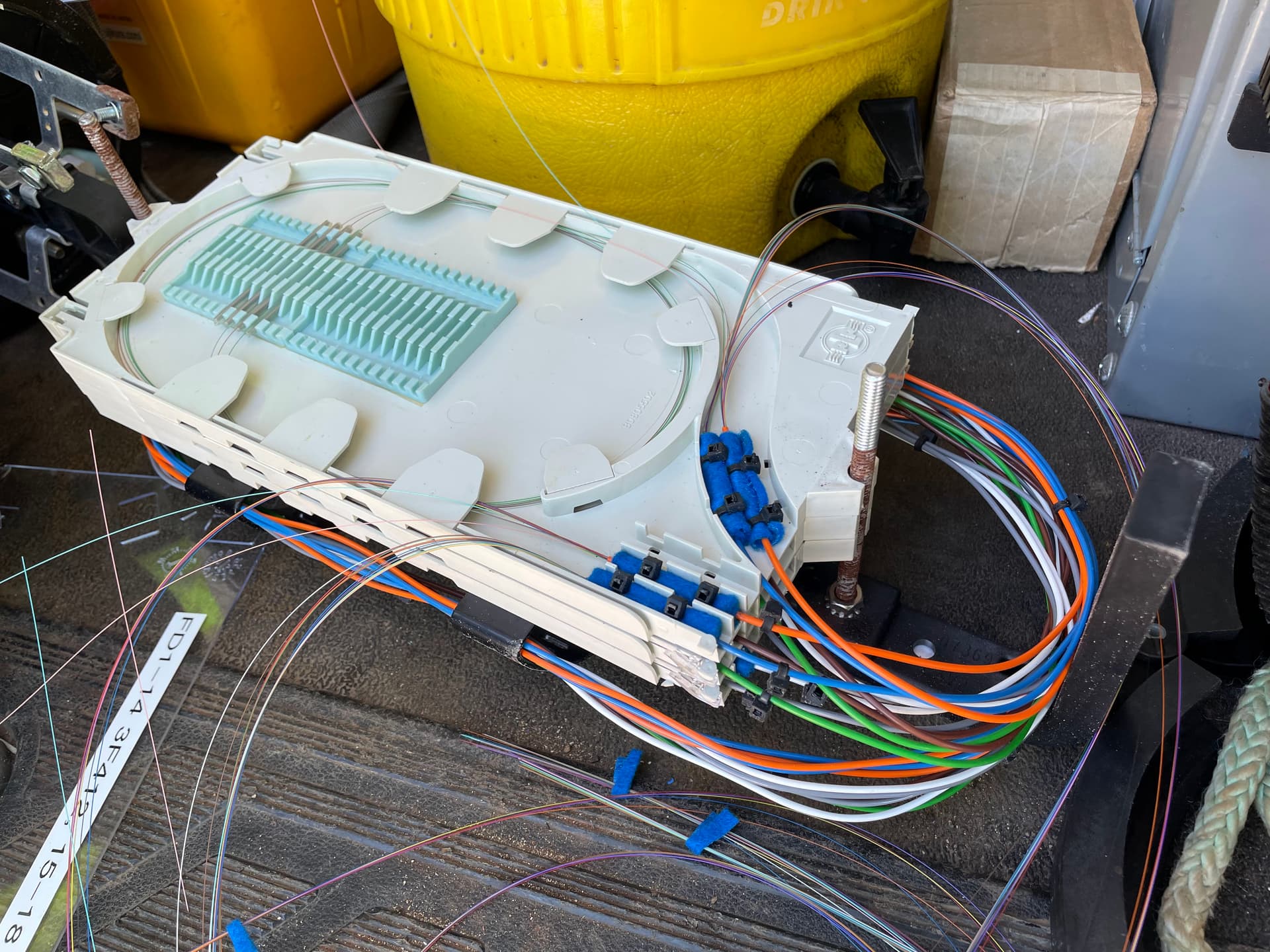

Each splice point appears on the trace as a drop in the signal level. The size of that drop - measured in decibels - is the splice loss. A good fusion splice shows less than 0.1 dB of loss. A bad splice, a contaminated connector, or a tight bend shows a larger drop.
What OTDR Results Tell You
- Splice loss: Loss at each splice point in dB. Industry standard is <0.1 dB for fusion splices.
- Connector loss: Loss at mated connectors. Typically 0.3–0.5 dB. Higher values indicate dirty or damaged connectors.
- Total link loss: End-to-end loss budget. Compared against the optical loss budget for the system to verify it will work.
- Cable length: Precise physical distance of each cable segment, useful for as-built documentation.
- Fault location: In a break or high-loss event, the OTDR pinpoints the location to within a meter.
When to Require OTDR Testing
OTDR testing should be required on every fiber installation and every splice repair. The only exception is very short indoor runs (typically under 100 meters) where the OTDR dead zone is longer than the cable itself - in those cases, end-to-end insertion loss testing with a light source and power meter is the appropriate method.
Always require OTDR traces as part of turnover documentation for new cable plant. These traces become the baseline record - if a problem develops later, the contractor or carrier can re-test and compare to the original baseline to identify what changed.
OTDR Test at Two Wavelengths
Single-mode fiber should be tested at both 1310nm and 1550nm. Some fiber defects and splice problems show up at one wavelength but not the other. Testing at 1550nm is also more sensitive to macro-bending (tight bends in the fiber) than 1310nm. A contractor who tests at only one wavelength is not providing a complete acceptance test.
